PCI-e 6.0 Riser Cable
/
PCIe 6.0 RISER CABLE 180-180 - Suntecc Technology
Click to zoom

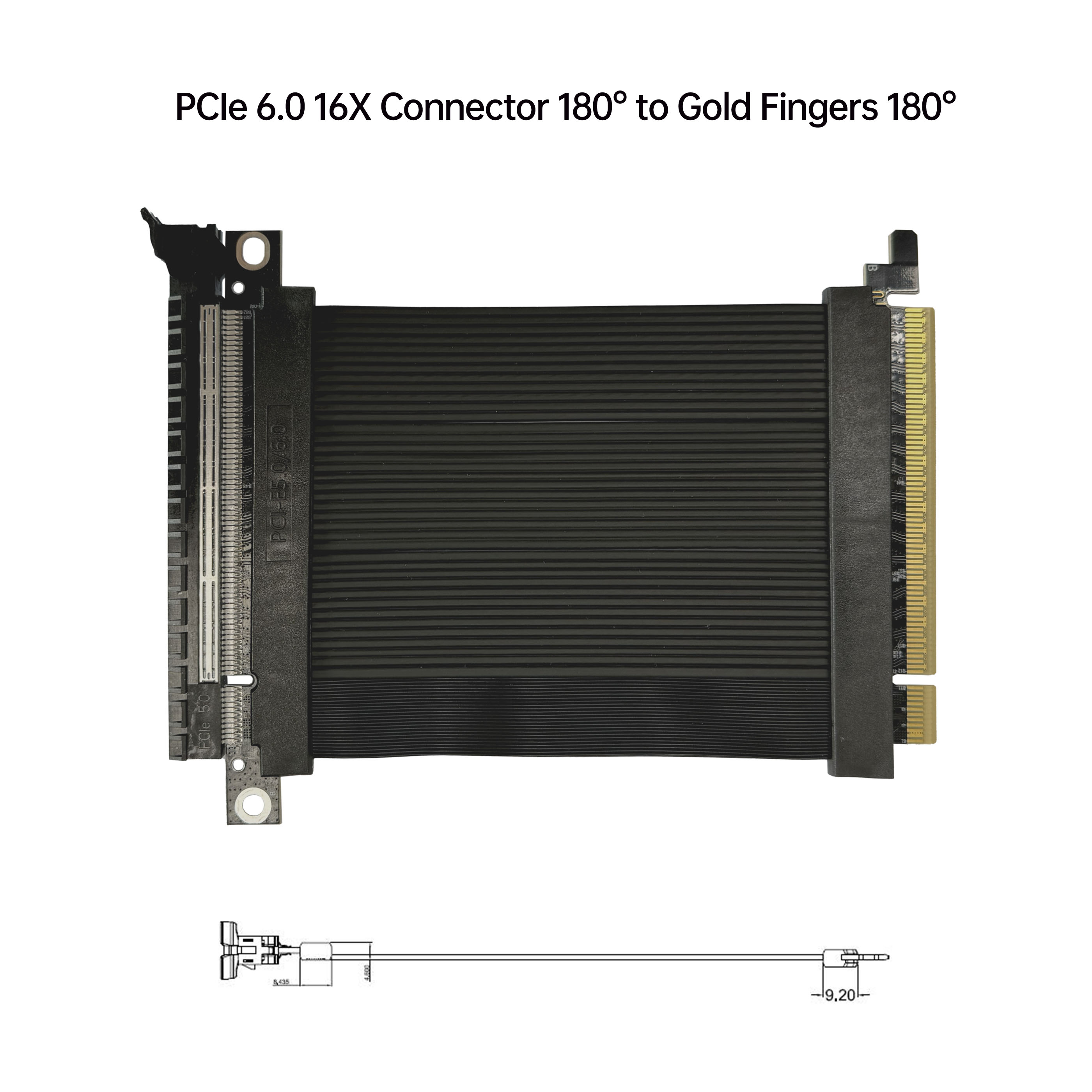

PCI-e 6.0 Riser Cable
T1070I4162502
PCIe 6.0 RISER CABLE 180-180 - Suntecc Technology
MOQ
Depends on the complexity of materials and processes
Sample
available
Category
PCI-e 6.0 Riser Cable
OEM
We support OEM/ODM
Consult Now
Contact Engineering Team
Technical Library
2D DRAWING
PDF Specs
Get
TEST REPORT
SI Data
Request
3D MODEL
Step Preview
View
Product Description
Specifications
Category
Parameter
Specifications
General Info
Model Number
T1070I4162502
Protocol Support
PCIe Gen 6.0 (Backward compatible with Gen 5.0/4.0/3.0)
Connector Orientation
180° (Straight) to 180° (Straight)
Electrical Performance
Transfer Rate
64 GT/s (Supports PAM4 Signaling)
Differential Impedance
85 ± 5 Ω (Compliant with PCIe CEM Specifications)
Current Rating
1.1A per contact pin
Operating Voltage
12V / 3.3V
Signal Integrity
Insertion Loss (IL)
≤ -5dB @ 16GHz (Typical)
Return Loss (RL)
Compliant with PCIe 6.0 Base Specification
Crosstalk Control
Optimized Low NEXT & FEXT performance
Material & Construction
Wire Gauge
30 AWG / 32 AWG
Cable Type
High-speed Twin-axial Cable
Shielding Structure
Individual pair foil shielding + outer composite shield
Contact Plating
15u" / 30u" Gold Plating (Optional)
Physical Reliability
Mating Cycles
≥ 50 Cycles (Per standard slot spec)
Operating Temp
-20°C to +80°C
Min. Bend Radius
15mm - 20mm (Dependent on gauge)
Compliance
Environmental
RoHS 2.0, REACH
Flammability
UL 94-V0
* Custom lengths and OEM/ODM services available upon request.
